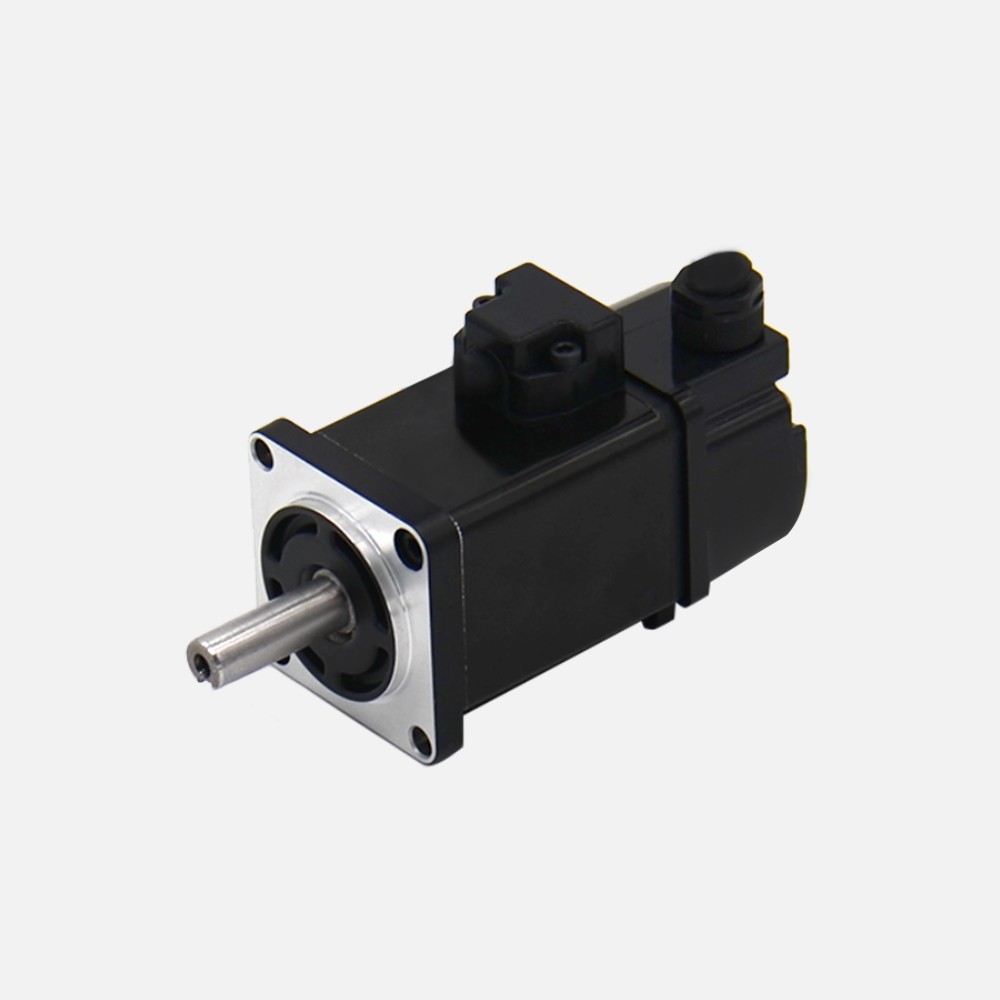

40SB Series
| 机能数据 |
| 型号 | 极对数 | 额定电压 | 额定功率 | 额定力矩 | 额定转速 | 最大力矩 | 最大转速 | 额定电流 | 最大电流 | 扭矩常数 |
| Units | / | VAC/VDC | W | N.m | rpm | N.m | rpm | A | A | N.m/A |
| 40S00230B3 | 5 | 220VAC | 50 | 0.16 | 3000 | 0.48 | 6000 | 0.6 | 1.8 | 0.29 |
| 40S00330B3 | 5 | 100 | 0.32 | 3000 | 0.96 | 6000 | 0.8 | 2.4 | 0.42 | |
| 40S00230B5 | 5 | 48VDC | 50 | 0.16 | 3000 | 0.48 | 4500 | 1.4 | 4.2 | 0.12 |
| 40S00330B5 | 5 | 200 | 27.7 | 62.5 | 50 | 80 | 6.2 | 12 | 6.15 |
| 型号 | 转子惯量 | 反电势常数 | 热绝缘等级 | 防护等级 | 编码器类型 | 运行环境 | 沉量 | 抱闸额定电压 | 不带抱闸长度 | 带抱闸长度 |
| Units | Kg*cm? | V/Krpm | Class | / | / | / | Kg | VDC | mm | mm |
| 40S00230B3 | 0.05 | 17.5 | F | IP65 (出轴端之表） | 增量式或绝对 值编码器 | -20℃ to 40℃ humidity＜90% | 0.39 | 24 | 69.5 | 99 |
| 40S00330B3 | 0.08 | 22.5 | 0.52 | 24 | 87.5 | 117 | ||||
| 40S00230B5 | 0.05 | 7.4 | F | IP65 (出轴端之表） | 增量式或绝对 值编码器 | -20℃ to 40℃ humidity＜90% | 0.39 | 24 | 69.5 | 99 |
| 40S00330B5 | 0.86 | 10.8 | 0.52 | 24 | 87.5 | 117 |
| 概括图 |
