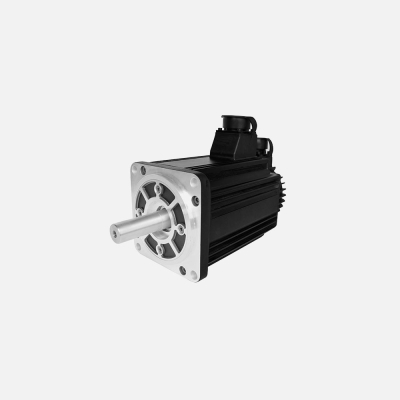

110S Series (110mm)
| 机能数据 |
| 型号 | 极对数 | 额定电压 | 额定功率 | 额定力矩 | 额定转速 | 最大力矩 | 额定电流 | 最大电流 | 扭矩常数 |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 110S02030A3EMRD | 5P | 311/220 | 600 | 2 | 3000 | 6 | 2.5 | 7.5 | 0.91 |
| 110S04030A3EMRD | 5P | 311/220 | 1200 | 4 | 3000 | 12 | 5 | 15 | 0.91 |
| 110S06030A3EMRD | 5P | 311/220 | 1800 | 6 | 3000 | 18 | 6 | 18 | 0.91 |
| 型号 | 转子惯量 | 反电势常数 | 绝缘耐压 | 防护等级 | 编码器类型 | 运行环境 | 沉量 | 长度 |
| Units | Kg*cm? | V/Krpm | / | / | / | / | Kg | mm |
| 110S02030A3EMRD | 3.1 | 55 | F | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 4.5 | 127mm |
| 110S04030A3EMRD | 5.4 | 55 | F | IP64 | 5.5 | 157mm | ||
| 110S06030A3EMRD | 6.3 | 5 | F | IP64 | 6.1 | 187mm |
| 概括图 |
