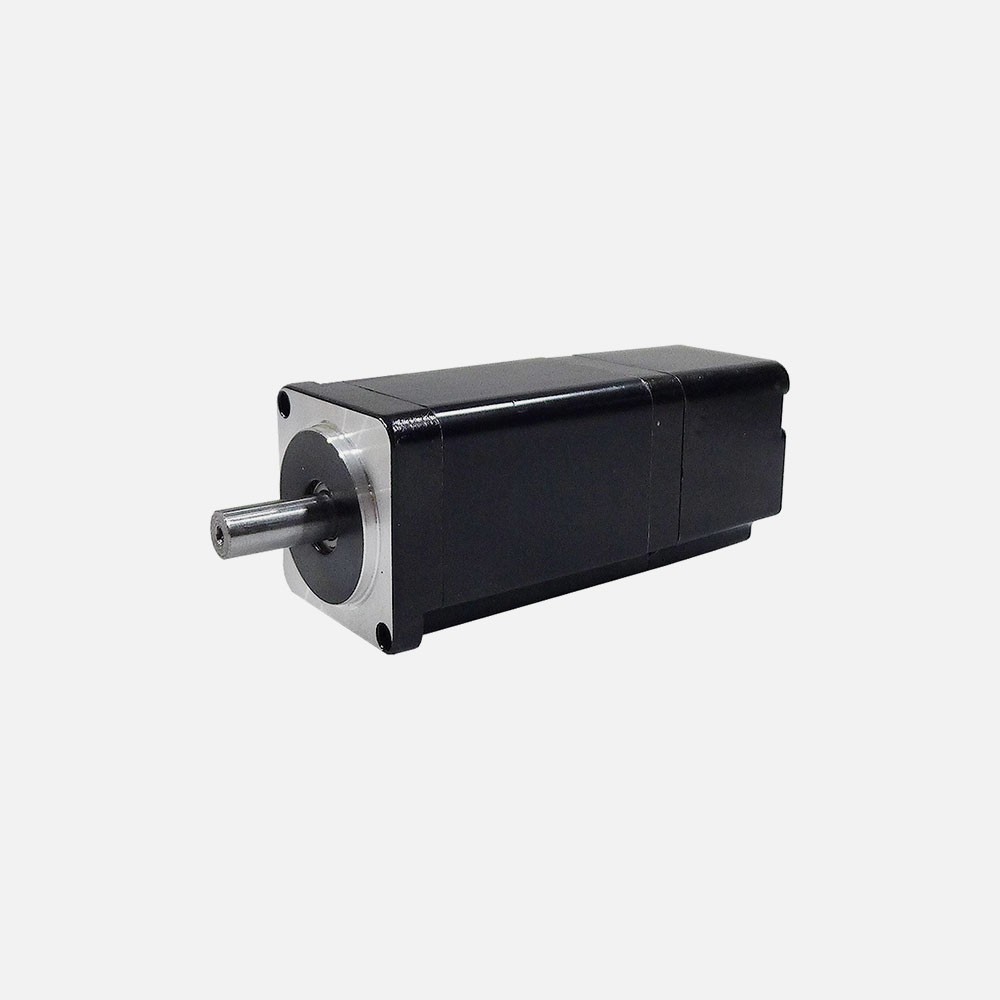

40S Series (40mm)
| 机能数据 |
| 型号 | 极对数 | 额定电压 | 额定功率 | 额定力矩 | 额定转速 | 最大力矩 | 额定电流 | 最大电流 | 扭矩常数 |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 40S00230A3EMRD | 5P | 311/220 | 50 | 0.16 | 3000 | 0.48 | 0.7 | 2.25 | 0.265 |
| 40S00430A3EMRD | 5P | 311/220 | 100 | 0.32 | 3000 | 0.96 | 1.4 | 4.2 | 0.265 |
| 型号 | 转子惯量 | 反电势常数 | 绝缘耐压 | 防护等级 | 编码器类型 | 运行环境 | 沉量 | 长度 |
| Units | Kg*cm? | V/Krpm | / | / | / | / | Kg | mm |
| 40S00230A3EMRD | 0.029 | 22 | 1500V 5mA 1min | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 0.5 | 88 |
| 40S00430A3EMRD | 0.052 | 22 | 1500V 5mA 1min | IP64 | 0.73 | 97 |
| 概括图 |
